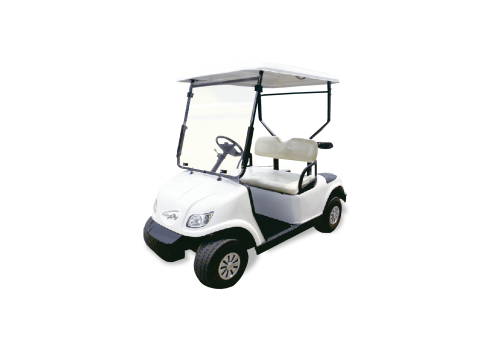

Electric vehicle for airport CARTTEC LQG022

Customizable electric golf car with welded tubular steel chassis.

TECHNICAL SPECIFICATIONS:
· Material: ABS Plastic/ PP material.
· Dimensions: 2440 × 1220 × 1900mm.
· Weight platform: 2400 × 1360 x 300mm.
· F/R Tread: 870/980mm.
· Curb weight: 520kg.
· Nominal load capacity: 160kg.
· Passenger capacity: : 2 seats (sponge + artificial leather).
· Max. speed: 24km/h.
· Range (loaded): 70km.
· Climbing Ability(loaded): 40%.
· Braking Distance: 3.5m.
· Min.Turning Radius: 3.5m.
· Min.Clearance: 105mm.
· Recharge time: 8~10h.
