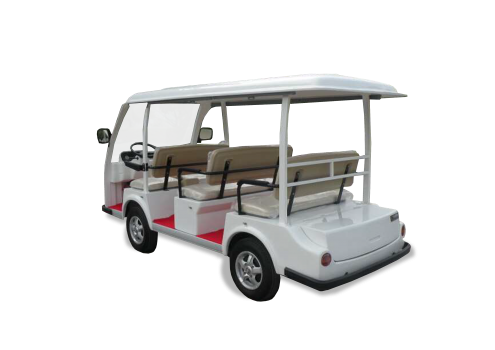

Electric vehicle for airport CARTTEC LQY081A

Customizable electric shuttle bus with welded tubular steel chassis.

TECHNICAL SPECIFICATIONS:
· Material: high impact fiber glass.
· Dimensions: 3860 × 1430 × 1940mm.
· F/R Tread: 1210/1200mm.
· Curb weight: 830kg.
· Nominal load capacity: 640kg.
· Passenger capacity: : 8 seats (sponge + artificial leather).
· Max. speed: 28km/h.
· Range (loaded): 80km.
· Climbing Ability(loaded): 18%.
· Braking Distance: 4m.
· Min.Turning Radius: 4m.
· Min.Clearance: 150mm.
· Recharge time: 8~10h.
