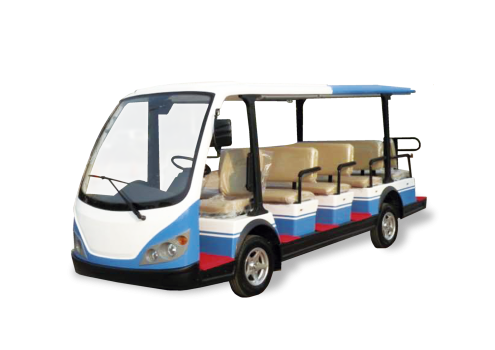

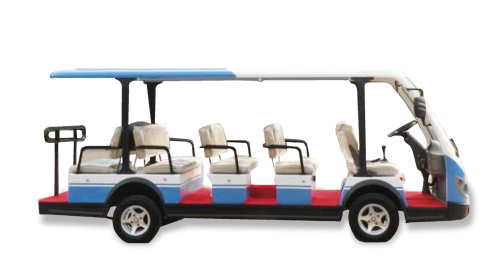

Electric vehicle for airport CARTTEC LQY145B

Customizable electric shuttle shuttle bus with welded tubular steel chassis.

TECHNICAL SPECIFICATIONS:
· Material: high impact fiber glass.
· Dimensions: 4965 × 1520 × 1970mm.
· F/R Tread: 1210/1200mm.
· Curb weight: 1290kg.
· Nominal load capacity: 1120kg.
· Passenger capacity: 14 seats (sponge + artificial leather).
· Max. speed: 1120kg.
· Range (loaded): 90km.
· Climbing Ability(loaded): 15%.
· Braking Distance: 5m.
· Min.Turning Radius: 5.7m.
· Min.Clearance: 150mm.
· Recharge time: 8~10h.
