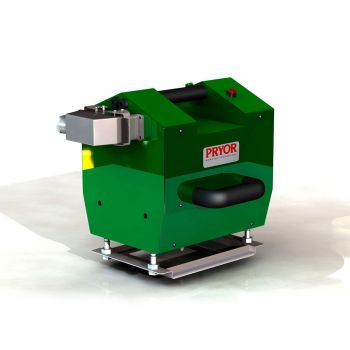

Portable dot peen marking machine IBEC SYSTEMS Portadot 100×75 EH

Very deep marking is possible with the DPH pneumatic dot marking version. Robust design with large marking window. The mobility of this portable machine is appreciated when marking very large or heavy parts.

Characteristics:

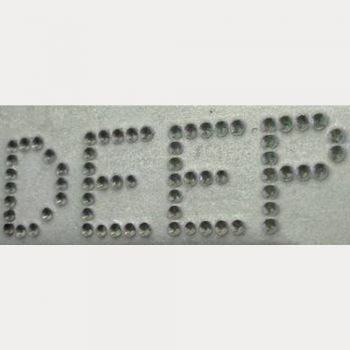

• Powerful portable dot marking machine capable of indenting components with deep marks (1 mm in mild steel, 1.5 mm in aluminium, DPH version)
• Pneumatic (DPH) or electromagnetic (EH) dot marking versions. Capable of marking all engineering materials up to 62HRc (800Hv)
• Robust mechanism and steel housing especially well suited to industrial applications
• Very large marking area
• 100 – 220v single phase supply (no pneumatics required).
• ‘Press and hold’ trial run feature allows the marking location to be determined quickly before marking.

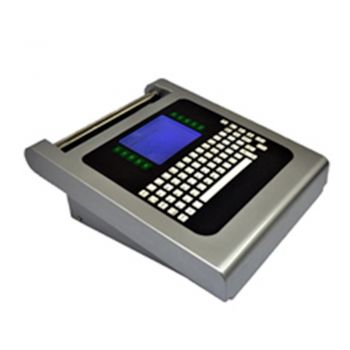

• Low running costs and virtually no consumable costs. 3000 controller and software
• Separate 3000 controller protects electronics from shock loading of mechanical marking operation.
• Durable integrated membrane keyboard with LCD linked function keys.
• Very large embedded graphical display.
• Simple to use menu system software with marking preview.
