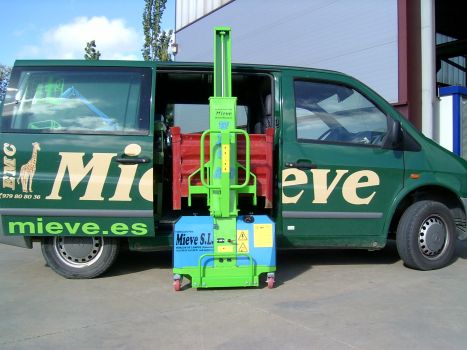

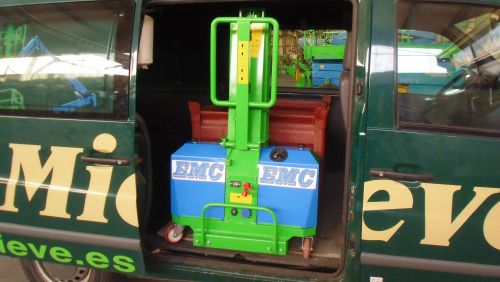

Self loading stacker
EMC
A10
MAXIMUM LIFT HEIGHT | 1050 mm. |
Full length | 1600 mm. |
WIDTH | 770 mm. |
MAST HEIGHT WITH COLLECTED | 1450 mm. |
MAXIMUM LOAD | 600 Kg. |
MINIMUM HEIGHT FORK | 85 mm. |
EXTERIOR FORK | 540 mm. |
DISTANCE FROM THE CENTER OF GRAVITY LOAD | 500 mm. |
ELECTRIC MOTOR | 12 V - 700 W. |
BATTERY | 12 V - 75 Ah |
BATTERY CHARGER | 12V. - 7 Ah |
NO WHEELS | February |
No. ROLLERS | 4 |
TOTAL WEIGHT | 240 kg. |
