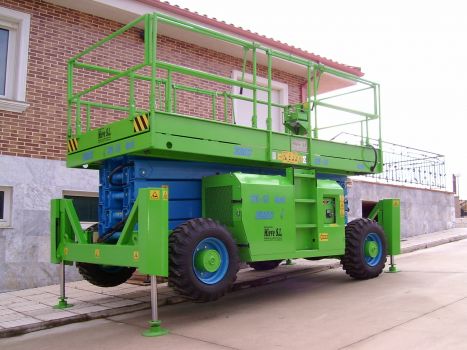

Self propelled scissor lift EMC PE-15

Type

Fork

Maximum Working Height

15 m.

Height of Floor Platform

13 m.

Full Length

4.22 m.

Width

2.30 m.

Height

2.73 m.

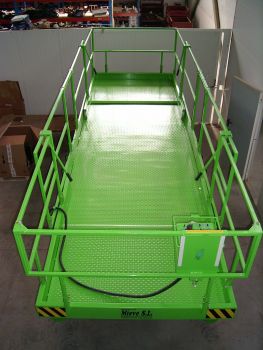

Dimensions Platform

3.90 x 1.88 m.

Extension Length (DOS)

1m.

Maximum Load Capacity

500 Kg.

Maximum Number of People in the

Platform

4

Wheelbase

2.75 m.

Slope

30%

Tilt Indicator

3rd

Translating Speed

0.5km / ha 4km / h

Engine

Diesel 30 hp.

Traction

4x4

Tire Dimensions

12 to 16.5

Hydraulic reservoir

100 lts.

Fuel tank

65 lts.

Total Weight

6600 Kg.

Quality Certification

rules "CE"

Equipment

Axis Tilting two extensions 4 Stabilizers
