Metal detector with high sensitivity

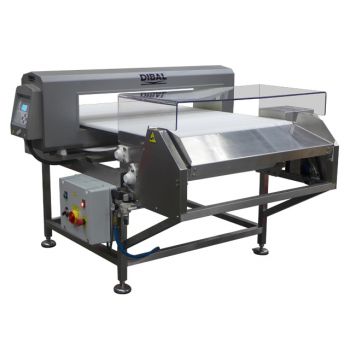

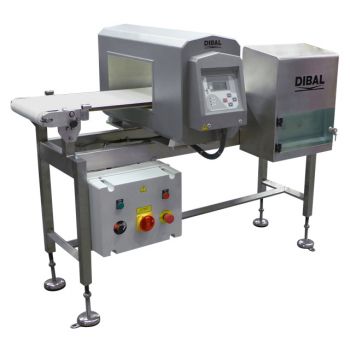

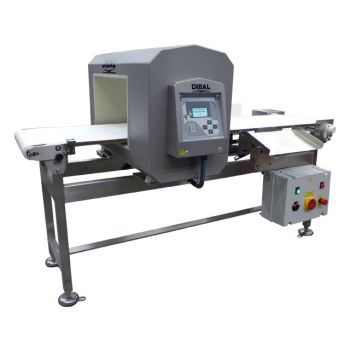

DIBAL  MD-5500

Metal detection systems with tunnel and conveyor belt for food industry.

Dibal MD-5500 metal detector for food industry is the optimal solution for product inspection. This metal detection system, supplied with tunnel and conveyor belt, contributes to assuring production quality.

OUTSTANDING FUNCTIONS

  • Mono-frequency. Optional multi-frequency.
  • Variable conveyor belt speed.
  • “Auto-setup” with interference suppression and automatic calibration of sensitivity.
  • Digital multi-filter: To guarantee maximum stability in harsh environments.
  • Auto-balance: Automatic detection and compensation of any signal changes (example: variations in temperature).
  • Precise detection area: Exact location of the metal particle in the detection field for easy separation.
  • Auto-monitoring: To control the proper working of the equipment.
  • Safety: access protected by three password levels.

CONSTRUCTION

  • Structure:
    • Painted aluminium tunnel (in AISI 304 stainless steel optional).
    • AISI 304 stainless steel frame.
    • IP66 protection (IP69K optional).
    • Plastic electrical box.
    • Transport conveyor driven by gear-motor.
  • Belts:
    • Characteristics: smooth rigid or modular.
  • Console:
    • 4-keys touchpad and blacklit LCD display.

COMMUNICATIONS TO PC

  •  RS-232.

POWER SUPPLY

  • 100-240 V AC, 50/60 Hz.

POSSIBLE INTEGRATION WITH OTHER EQUIPMENT

  • Dibal LS-3000, LS-4000 and LS-4000+ automatic weigh-price labellers.
  • Dibal CW-3000, CW-4000 and CW-4000+ checkweighers.
  • Dibal GW-3000, GW-4000 and GW-4000+ graders.
