Metal detector with high sensitivity

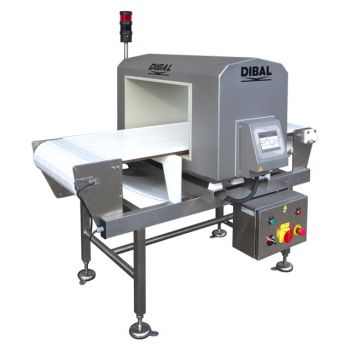

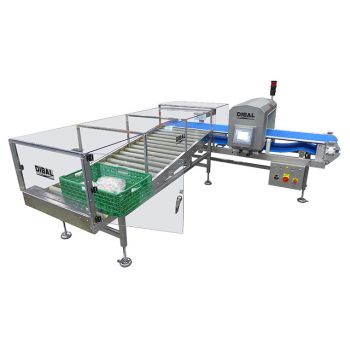

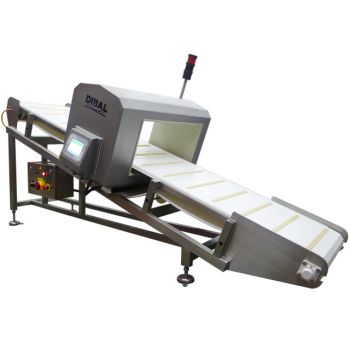

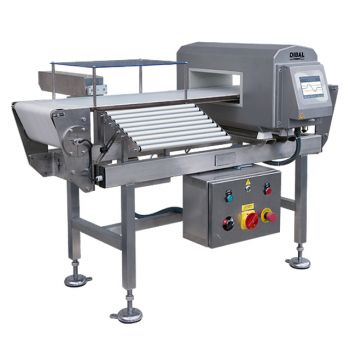

DIBAL  MD-5700

Metal detection systems with touch screen, tunnel and conveyor belt for food industry.

Dibal MD-5700 metal detector for food industry, a multi-frequency metal detection system, is supplied with a tunnel and a conveyor belt. Its high sensitivity is its oustanding feature.

OUTSTANDING FUNCTIONS

  • Multi-frequency.
  • Variable conveyor belt speed.
  • “Auto-setup” with inteference suppression and automatic calibration of sensitivity.
  • Digital multi-filter: To guarantee maximum stability in harsh environments.
  • Auto-balance: Automatic detection and compensation of any signal changes (example: variations in temperature).
  • Precise detection area: Exact location of the metal particle in the detection field for easy separation.
  • Auto-monitoring: To control the proper working of the equipment.
  • Automatic cancellation of product effect, with capacity to measure the product parameters in real time.
  • Dynamic self-monitoring (monitoring changes in product characteristics). it guarantees maximum sensitivity in each operation.
  • Safety: access protected by three password levels.

CONSTRUCTION

  • Structure:
    • AISI 304 stainless steel tunnel.
    • AISI 304 stainless steel frame.
    • IP66 protection (IP69K optional).
    • AISI 304 stainless steel electrical box.
    • Transport conveyor driven by drum motor.
  • Belts:
    • Characteristics: smooth rigid or modular.
  • Console:
    • 5.7” colour touch screen (protection cover optional).

COMMUNICATIONS TO PC

  • RS-232.
  • Ethernet.
  • Wi-Fi optional.
  • USB port: To export reports of detection and changes on configuration, as well as for back up.

POWER SUPPLY

  • 100-240 V AC, 50/60 Hz.

POSSIBLE INTEGRATION WITH OTHER EQUIPMENT

  • Dibal LS-3000, LS-4000 and LS-4000+ automatic weigh-price labellers.
  • Dibal CW-3000, CW-4000 and CW-4000+ checkweighers.
  • Dibal GW-3000, GW-4000 and GW-4000+ graders.
