Weigh price labeller

DIBAL  LP-3000

LLabel printers for manual labelling of products.

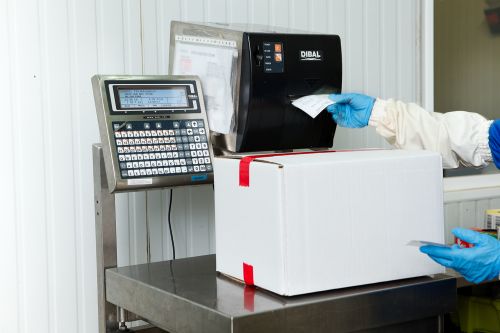

Dibal LP-3000 label printer is ideal for manual labelling of products. Connected to a weighing platform and a weight indicator works as a full equipment to print labels with weight and price information.

OUTSTANDING FUNCTIONS

  • Labelling of fix/variable weight/price.
  • Orders management.
  • Labelling of totals.
  • Generic traceability on label.
  • Adapted to comply with EU Regulation 1169/2011 referring to food information.
  • Barcodes:
    • EAN-8, EAN-13, EAN-128, CODE 128, ITF-14, GS1 Datamatrix and GS1 Databar (up to 4 codes per label).

WEIGHING (OPTIONAL)

  • Connection to 1 or 4 load cells platform.
  • Connection to a 2nd platform through a Dibal weight indicator (DMi-610 or DMi-620).

LABELLING SYSTEM

  • Printing type:
    • Direct Thermal (DT) or Thermal Transfer (TT) (depending on the models).
  • Printhead:
    • Long-lasting 3” or 4” (depending on the models).
  • Resolution:
    • 8 dots/mm.

LABELS

  • Dimensions depending on the inches of the printhead:
    • 3” printhead: from W30 x L30 mm, up to W80 x L300 mm.
    • 4” printhead: from W30 x L30 mm, up to W102 x L300 mm.

CONSTRUCTION

  • Structure:
    • AISI 304 stainless steel and texturised ABS.
  • Console:
    • Stainless steel.
    • “Qwerty” keypad and backlit graphic LCD display.

COMMUNICATION TO PC

  • Ethernet TCP/IP.
  • RS-232/422/485.

PC SOFTWARE

  • RMS: For equipment configuration, production data management and back up (LBS).
  • DLD: For graphic design of labels.
  • Integration tools: See section on software.

POWER SUPPLY

  • 230 V / 50 Hz; 115 V / 60 Hz.

POSSIBLE INTEGRATION WITH OTHER EQUIPMENT

  • 1 or 4 load cells weighing platform.
  • Dibal LS-3000 and LS-4000 automatic weigh-price labeller.
  • Dibal weight indicator.
  • Printer with Serial protocol.
  • Another LP-3000.
