Digital weight indicator

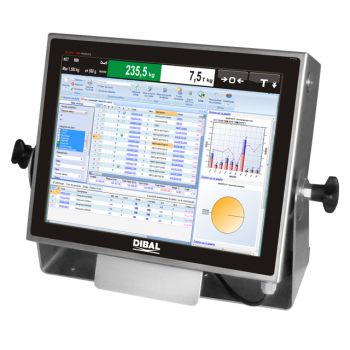

DIBAL  VT-800

High-performance weighing indicator with PC architecture and TFT touch screen.

Dibal VT-800 are high-performance weight indicators with TFT touch screen. These PC architecture weighing indicators can be integrated with your company’s production software for advanced control tasks based on weighing.

MAIN CHARACTERISTICS

  • High-performance indicator with PC architecture fitted with the SW1100 weighing application.

OUTSTANDING FUNCTIONS

  • Database of: products, operators, customers, receipt and label formats...
  • Possibility of information fields with very broad descriptions (texts, ingredients, allergens...).
  • Barcodes: EAN-8, EAN-13, EAN-128 and CODE 128.
  • Integral management of generic traceability.
  • Stock management.
  • Up to 3 levels of totals with different label formats and barcodes.
  • Printing of receipts and labels with variable weight.
  • Delivery notes & invoicing.
  • Sales reports and graphics.
  • Customised operation screens.
  • Design of delivery note, invoice, receipt and label formats.
  • Indicators network management.
  • Automatic local and remote integration of files generated by external applications.
  • Automatic export of files for sales and product data management by external applications.
  • Remote and direct integration (TCP/iP) of ERP systems with equipment weighing.

CPU

  • Industrial fanless.
  • Processor: intel Dual-Core 1.86 MHz.
  • Memory: 2 GB, DDR3. Optional 4 GB.
  • 120 GB SSD.
  • Solid state drives.

WEIGHING

  • Connection to 1 weighing platform of up to 4 load cells.
    (connection to 2nd platform, optional).
  • Up to 3,000 divisions. Monorange.

CONSTRUCTION

  • Structure:
    • AISI 304 stainless steel housing.
  • Screen:
    • 15” TFT touch screen.
  • IP65 protection equivalent with packing gland (IP54 cable duct).
  • Adjustable angle mount for table or wall included.

CONNECTIONS ON PANEL

  • 1 RS-232/422/485.
  • 1 RS-232.
  • 2 Ethernet.
  • 4 USB.
  • VGA /DVI-D (for extra screen).

INTERNAL CONNECTIONS

  • 8 RS-232.
  • 4 digital Input/Output.
  • 1 MiniPCie for connection to a Wi-Fi module or a m-SATA disk.
  • 2 SATA.
  • 1 PCI Slot.

SOFTWARE (INCLUDED)

  • SW1100: For indicator configuration and data management. Weight data received from the platform can be displayed and sent to external printers and ERP systems.
  • Multiple tools available for ERP integration.

POWER SUPPLY

  • 230/110 V direct.

POSSIBLE INTEGRATION WITH OTHER EQUIPMENT

  • Dibal LS-3000, LS-4000 and LS-4000+ automatic weigh-price labellers.
  • Dibal LP-3000 manual weigh-price labeller.
  • Dibal weight indicators.
  • Cely RD-4 repeater.
  • Dibal PC-800 industrial PC.

OTHER POSSIBLE PERIPHERALS

  • Barcode reader scanner (only needs wiring for communications).
  • TV.
  • 1 audio (I/O).
  • Printers.
  • Others: keypad, mouse, etc.
