Articulated arm pneumatic tapping machine

GAMOR  GN12 M3-M12

BASIC EQUIPMENT

  • Pneumatic engine GAMOR, serie A.
  • Reinforced arm structure of hard aluminum (parallelogram).
  • Table attachment column.
  • Air filter.
  • Tapping chuck Ø19.
  • Set of 6 tap holders with safety clutch from M4 to M12.

TECHNICAL CHARACTERISTICS

  • CAPACITY: M3-M12
  • SPEED: 400 RPM

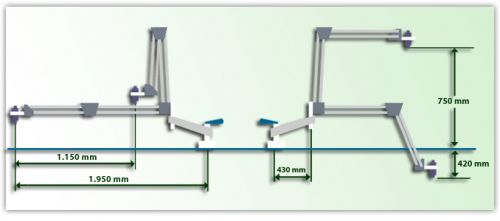

  • WORK RANGE: max: 1900mm - min: 200mm
  • WORKING PRESSURE:  7 bar - 840 lt/min
  • WEIGTH: 18 Kg.

This data sheet belongs to the next category:
Tapping machines
