CNC bridge type milling machine

CORREA  Rapid 50

Used machinery
Ref: 575043

Bridge type milling machine CORREA RAPID50

YOM: 2002

Control Unit: Heidenhain TNC-530



Table dimensions: 5000 x 2000 mm

Number of T slots: 11

T slots dimensions: 22 mm



X axis traverse: 5000 mm

Y axis traverse: 3100 mm

Distance between columns: 2800 mm

Z axis traverse: 1200 mm

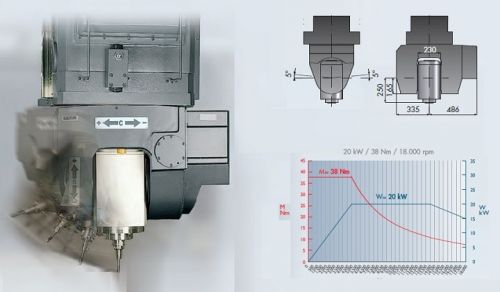

Head type: CCE 2 Axis continuous

Tool clamping system: Hydraulic

Taper nose: HSK 63

Speed range: 18000 r.p.m.

Spindle power: 20 kW



Rapid federate (X, Y,Z): 20000 / 30000 mm/min



Max Weight on table: 15000 kg

Machine weight: 65000 kg

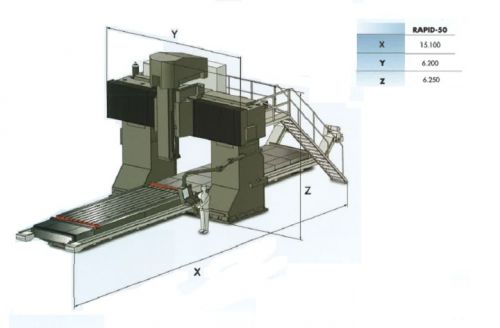

Machine dimensions: 15100 x 6200 x 6250 mm



Full guarding

Automatic tool changer: ATC24

Dual chip conveyors

Electronic handwheel: HR-410



Sale price (Ex Work): On request

For immediate delivery!

Ask for enquiry
