NC SERVICE MILLING MACHINES S.A.

CNC bridge type milling machine

CORREA  FP40/50
Year: 1998

Used machinery
Ref: 8920205

TYPE OF MILLING MACHINE

  • Type: Bridge type
  • Brand: Correa
  • Model: FP40/50
  • Year of manufacture: 1998
  • Retrofitted: 2019
  • Numerical control: SIEMENS 840D / Opc. Nuevo HEIDENHAIN TNC-530

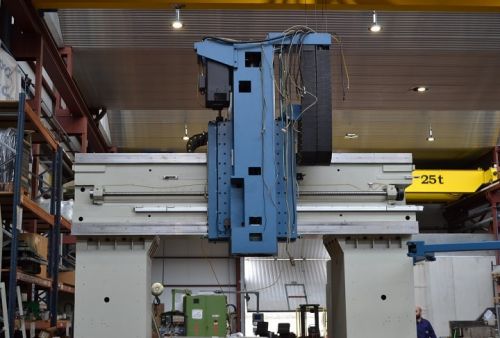

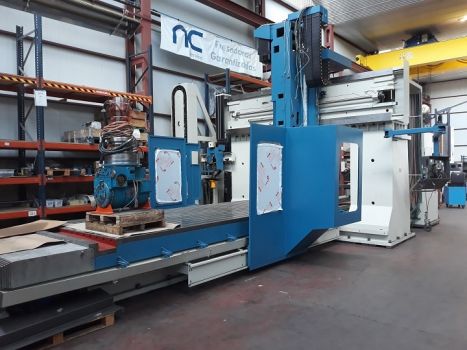

Refurbished CORREA FP40/50 bridge type milling machine, which structure offers an excellent combination of rigidity and dynamic performance. Its C5E-2 axis continuous milling head, allows a very versatile and high quality machining. Ideal for automotive or aeronautics sectors.

5-axis CORREA milling machine, refurbished and with guarantees.

TECHNICAL FEATURES

Dimensions

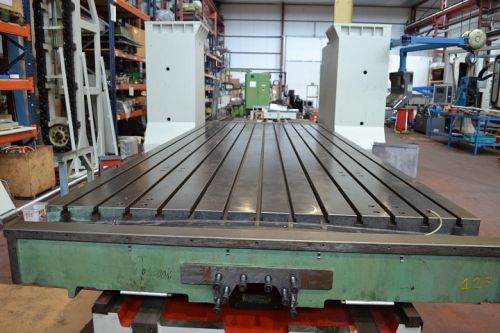

  • Table dimensions: 5000 x 2000 mm
  • Number of T slots: 13
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 5000 mm
  • Y axis traverse: 3250 mm
  • Z axis traverse: 1000 mm
  • Distance between columns: 2500 mm

Milling head

  • Head type: C5E- 2 axis continuous head
  • Tool clamping system: Hydraulic
  • Taper nose: BT 50
  • Speed range: 40 - 4000 rpm
  • Spindle power: 37 kW / 372 Nm

Feedrates

  • Feedrate: 2 - 5000 mm/min
  • X-Y,Z Rapid feedrate: 7200 / 12000 mm/min

Weight and dimensions

  • Max Weight on table: 25000 kg
  • Machine weight: 40500 kg
  • Machine dimensions: 12700 x 5070  x 4900 mm

Accesories

  • Guarding
  • Automatic tool changer: ATC-60
  • Electronic handwheel: HR-510

SALES CONDITIONS

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
