NC SERVICE MILLING MACHINES S.A.

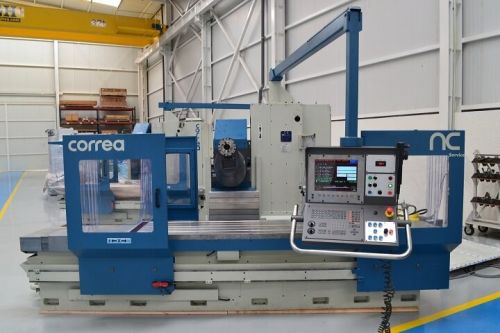

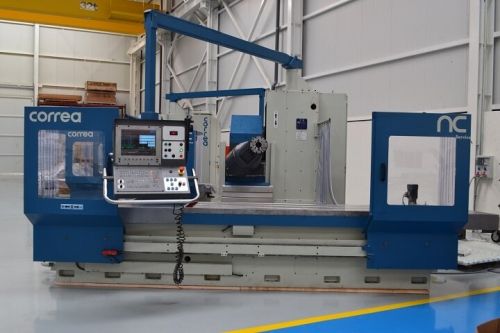

Bed-type CNC milling machine

CORREA  CF22/25-PLUS

Used machinery
Ref: 967396

TYPE OF MILLING MACHINE

  • Type: Bed type
  • Brand: Correa
  • Model: CF22/25-PLUS
  • Year of manufacture: 2001
  • Condition: Refurbished

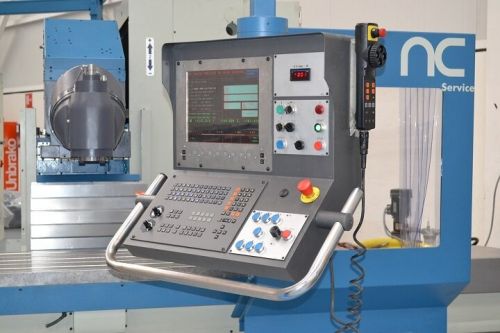

  • Numerical control: HEIDENHAIN TNC-426

TECHNICAL FEATURES

Dimensions

  • Table dimensions: 2500 x 700 mm
  • Number of slots: 5
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 2500 mm
  • Y axis traverse: 800 mm
  • Z axis traverse: 800 mm

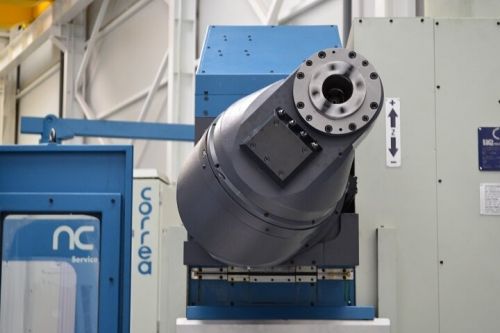

Milling head

  • Head type: NEW! 2,5º Auto indexing milling head UDG
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50 (DIN 69871)
  • Speed range: 3000 rpm
  • Spindle power: 22 kW

Feedrates

  • Feedrate: 5 - 5000 mm/min
  • Rapid federate (X / Y, Z):  12000 mm/min

Weight and dimensions

  • Max Weight on table: 4000 kg
  • Machine weight: 9500 kg
  • Machine dimensions: 6605 x 3315 x 2730 mm

Accesories

  • Electronic handwheel:  HR-410
  • Guarding
  • Coolant: External & internal coolant through spindle

SALES CONDITIONS

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request

Ask for enquiry
