NC SERVICE MILLING MACHINES S.A.True
NC SERVICE MILLING MACHINES S.A.

Bed-type CNC milling machine

CORREA  CF20/20

Used machinery
Ref: 9690503

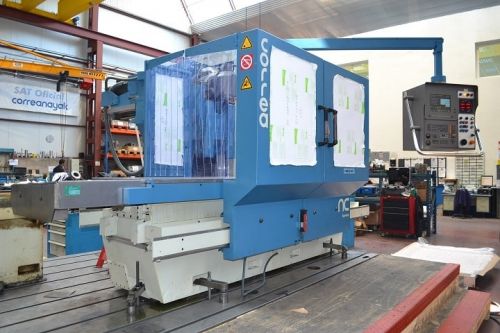

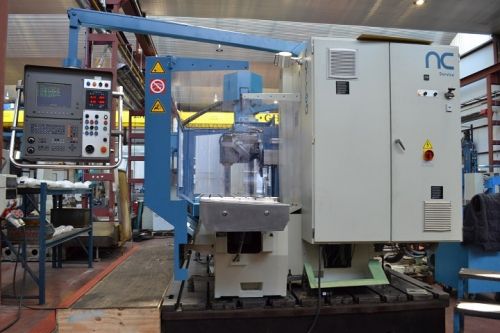

Bed milling machine CORREA CF20/20 (S/n: 9690503)

Year of manufacture: 1995

Condition: Refurbished

Control unit: HEIDENHAIN TNC-407A

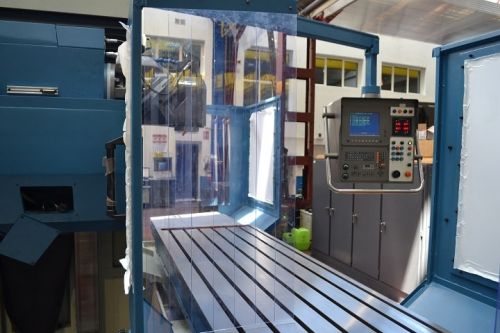

Table dimensions: 2000 x 700 mm

Number of slots: 6

T slots dimensions: 18 mm



X axis traverse: 2000 mm

Y axis traverse: 800 mm

Z axis traverse: 800 mm



Head type: Universal manual (U25)

Tool clamping system: Hydraulic

Taper nose: ISO-50 - DIN2080

Speed range: 20 - 2500 r.p.m.

Spindle power: 15 kW



Feedrate: 5 - 5000 mm/min

Rapid federate (X / Y, Z):  12000 mm/min



Max Weight on table: 3500 kg

Machine weight: 10000 kg

Machine dimensions: 5200 x 3127 x 2450 mm



ACCESSORIES:

Guarding

Electronic handwheel: HR-130

Coolant: External



SALES CONDITIONS

Warranty: 6 months mechanical parts

Sale price (Ex Work): On request

Ask for enquiry
