Bed-type CNC milling machine

CORREA  Diana 25
Year: 2018

Used machinery
Ref: 624063

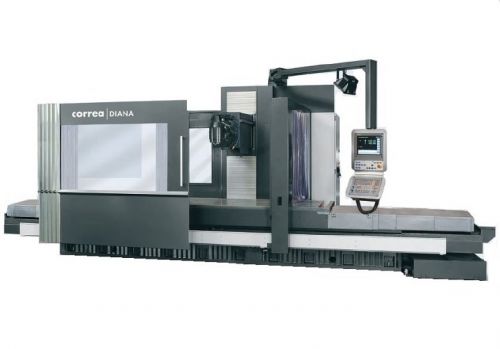

Bed milling machine: CORREA DIANA 25

YOM: 2008

Condition: retrofitted

Control unit: HEIDENHAIN TNC-i530



Table dimensions: 2800 x 900 mm

Number of T slots: 5

T slots dimensions: 22 mm



X axis traverse (mm): 2500

Y axis traverse (mm): 1000

Z axis traverse (mm): 1000

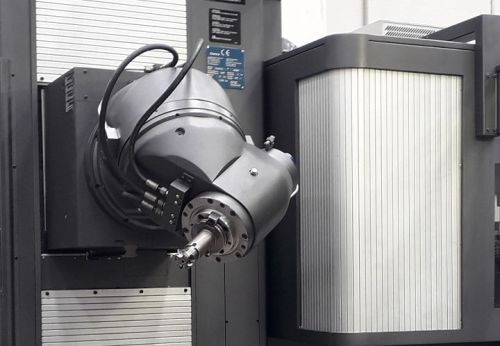

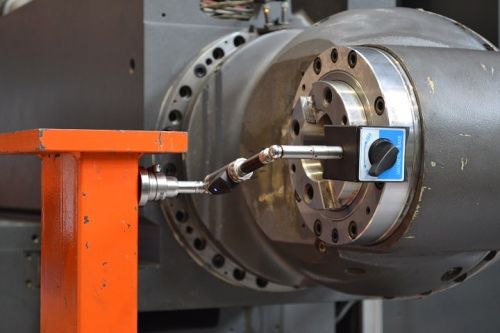

Head type: Universal Auto-indexing UDG (2.5º)

Tool clamping system: Hydraulic

Taper nose: ISO 50 (DIN69871)

Speed range: 3000 r.p.m.

Spindle power: 22 kW



Rapid feedrate (X / Y, Z): 20000 mm/min



Max weight on table: 4000 kg

Machine weight: 15000 kg

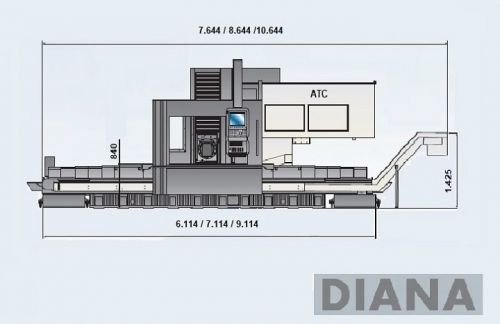

Machine dimensions: 7114 x 5070 x 2803 mm



ACCESSORIES:

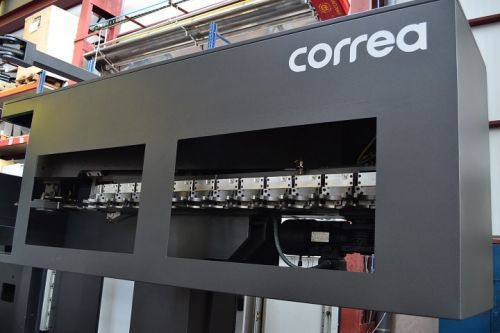

Guarding

Automatic tool changer: ATC-30

Electronic handwheel: HR-410

Coolant through spindle: High pressure

Coolant tank and coolant cleaning unit

Chip conveyor: longitudinal



Guarantee: 6 months mechanical spare parts

Sale price (Ex Work): On request

Ask for enquiry
