NC SERVICE MILLING MACHINES S.A.

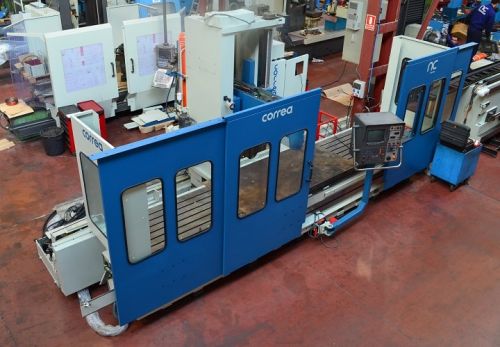

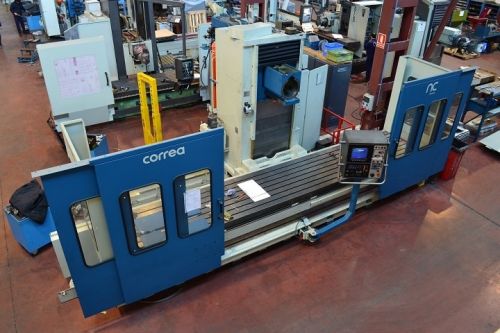

CNC traveling column milling machine

CORREA  L30/43

Used machinery
Ref: 7900406

TYPE OF MILLING MACHINE

  • Type: Floor type
  • Brand: Correa
  • Model: L30/43
  • Year of manufacture: 1995
  • Retrofitted: 2019
  • Numerical control: HEIDENHAIN TNC-407

TECHNICAL FEATURESDimensions

  • Table dimensions: 6120 x 1000 mm
  • Number of T slots: 7
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 4300 mm
  • Y axis traverse: 1200 mm
  • Z axis traverse: 1500 mm

Milling head

  • Head type: Auto-indexing UDG40

              - Body 1: 0 - 180º
              - Body 2: -180º - 0º - +180º (every 3º)

  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50
  • Speed range: 20 - 2000 rpm
  • Spindle power: 22 kW

Feedrates

  • Feedrate: 5000 mm/min
  • Rapid feedrate (X / Y , Z): 10000 mm/min

Weight and dimensions

  • Max weight on table: 20000 kg
  • Machine weight: 28000 kg
  • Machine dimensions: 9500 x 5600 x 3505 mm

Accesories

  • Guarding
  • Automatic tool changer: ATC-30
  • Coolant: External & Internal
  • Chip Conveyor

SALES CONDITIONS

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request

Ask for enquiry
