NC SERVICE MILLING MACHINES S.A.

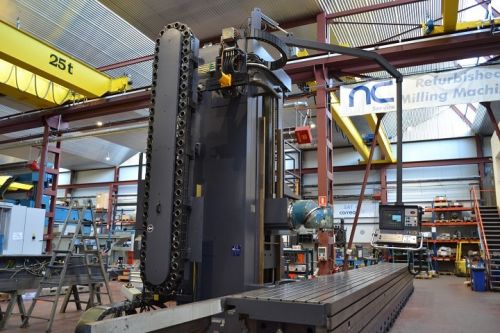

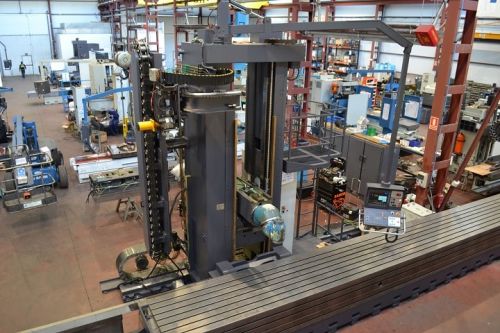

CNC traveling column milling machine

CORREA  L30/104
Year: 1998

Used machinery
Ref: 7901103

TYPE OF MILLING MACHINE

  • Type: Floor type
  • Brand: Correa
  • Model: L30/104
  • Year of manufacture: 1998
  • Condition: Refurbished

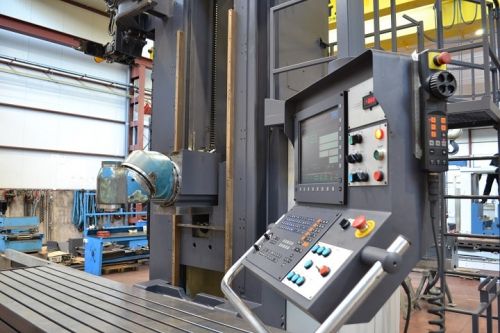

  • Numerical control: HEIDENHAIN TNC-426

TECHNICAL FEATURES

Dimensions

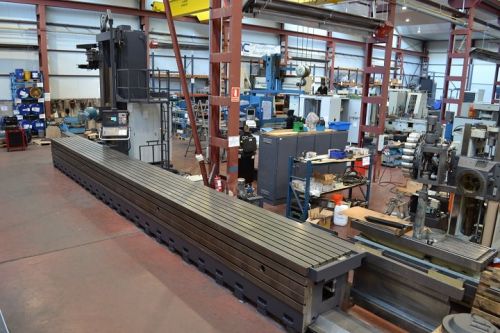

  • Table dimensions: 12240 x 1000 mm
  • Number of T slots: 6
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 10450 mm
  • Y axis traverse: 1200 mm
  • Z axis traverse: 2500 mm

Milling head

  • Head type: Universal Auto-indexing head UDG-40 (2,5º)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50
  • Speed range: 20 - 3000 rpm
  • Spindle power: 30 kW (1204 Nm)

Feedrates

  • Feedrate: 20 - 5000 mm/min
  • Rapid feedrate (X / Y , Z): 10000 mm/min

Weight and dimensions

  • Max weight on table: 42000 kg
  • Machine weight: 45000 kg
  • Machine dimensions: 16000 x 5600 x 4830 mm

Accesories

  • Guarding: Not included. To be defined according to customer’s needs.
  • Automatic tool changer: ATC-60
  • Coolant through spindle & external coolant
  • Longitudinal chip conveyor
  • Electronic handwheel: HR-410
  • Rotary table: Dimensiones: 1200 x 1200 mm / H: 368 mm Indexing: +/- 3 sec / Max load: 5000 kg / V: 3,7 r.p.m.

SALES CONDITIONS

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
