NC SERVICE MILLING MACHINES S.A.

CNC traveling column milling machine

ZAYER  KM 11000
Year: 1992

Used machinery
Ref: 61023

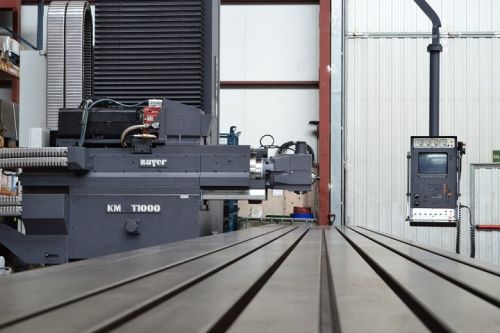

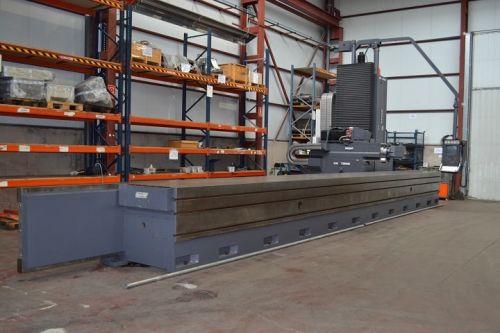

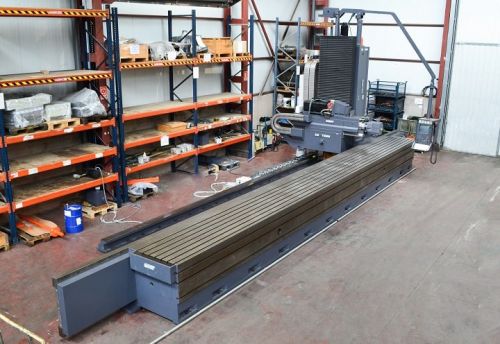

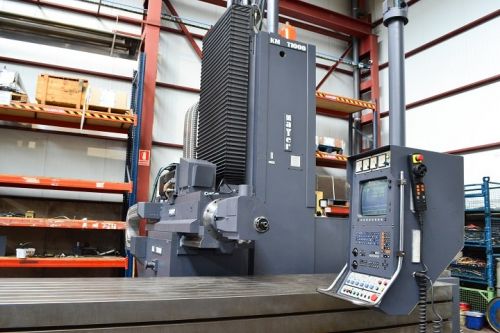

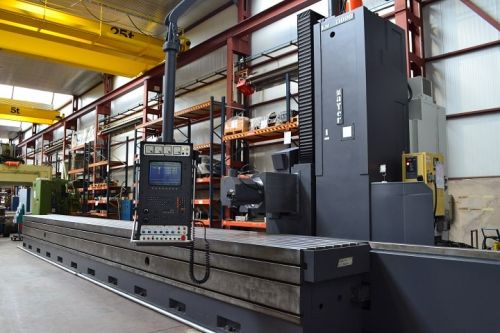

Mobile column milling machine Zayer KM 11000 (61023)

YOM: 1992

Condition: refurbished

CNC HEIDENHAIN TNC-415



Table dimensions: 11000 x 1000 mm

Number of T slots: 7

T slots dimensions: 22 mm



X axis traverse: 9300 mm

Y axis traverse: 1010 mm

Z axis traverse: 2000 mm



Head type: DM25

Tool clamping system: Hydraulic

Taper nose: ISO 50 / DIN2080

Speed range: 1800 r.p.m.

Spindle power: 34 kW



Feedrate: 6 - 5000 mm/min

Rapid feedrate (X / Y , Z): 10000 / 15000 mm/min



Max weight on table: 20000 kg

Machine weight: 48000 kg

Machine dimensions: 11000 x 4450 x 5480 mm



Coolant: external

Heidenhain electronic handwheel

Option: New guarding



Warranty: 6 months mechanical parts

Sale price (Ex Work): On request

Ask for enquiry
