Digital weight indicator

DIBAL  DMI-610

Weighing indicators for checkweighing, dosing, piece counting…

Dibal DMI-610 weight indicators are suitable for multiple functions in weighing processes (piece counting, checkweighing, dosing…), and they are connectable to weighing platforms up to 14 load cells.

OUTSTANDING FUNCTIONS

  • Weight-Tare-Accumulation.
  • Piece counting.
  • Checkweighing (minimum-target-maximum).
  • Dosing: 1 product / 2 speeds (with 4 Input/Output option. Only available for DMI-610 S. Steel).
  • Checkweighing (with 4 Input/Output option. Only available for DMi-610 S. Steel).
  • 4-20 mA / 0-10 V analog output (optional and only available for DMi-610 S. Steel).
  • Real time clock, battery-run.
  • Optional ALiBi memory (pending type approval).
  • Repeater.

CPU

  • Processor / Microprocessor:  ARM 32 bit cortex M3.
  • Memorory: 256 Kb Flash and 48 Kb RAM.

WEIGHING

  • Connection to 1 weighing platform of up to 14 load cells.
  • Alignment: up to five adjustment points.
  • Up to 6,000 divisions. Monorange, multirange or multiinterval.

CONSTRUCTION

  • Structure:

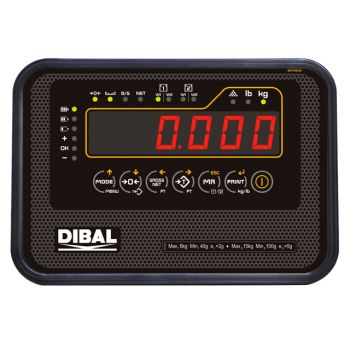

    • High-resistance ABS plastic in DMI-610 Basic ABS and DMI-610 ABS models.

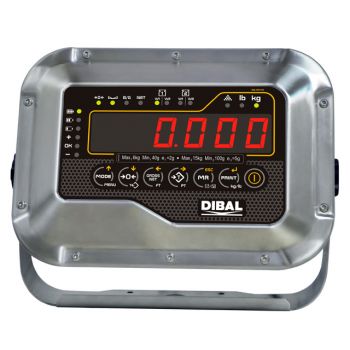

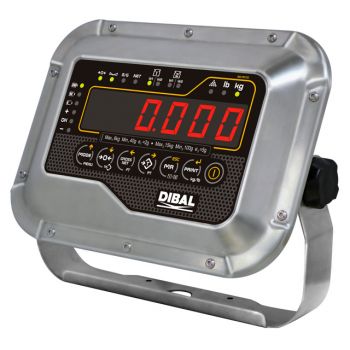

    • AISI 304 stainless steel in DMI-610 S. Steel model.
  • Keypad and display:
    • Keypad with 7 keys and red segments LED display with 6 red digits (1” - 25.4 mm).
  • Working mode: weight (kg, lb), piece counting, checkweighing...
  • Adjustable angle mount for table or wall included.

COMMUNICATION TO PC

  • Two RS-232 ports, one of them selfpowered (5 V / 500 mA).
  • Ethernet (TCP/iP and UDP) (optional).
  • RS-485/RS-422 optional (only available for DMI-610 S. Steel).
  • Several communications protocols available (contact us).

PC SOFTWARE

  • DCM:
    • Configuration of the indicator and back up.
    • Management and processing of data gathered by the indicator.

POWER SUPPLY

  • 230 V / 50 Hz; 115 V / 60 Hz in models DMI-610 ABS and DMI-610 St. Steel.
  • 12 VDC adaptor in model DMI-610 Basic ABS.
  • Internal rechargeable battery (Li-ion), optional in models DMI-610 ABS and DMI-610 S. Steel:
    • Up to 44 hours’ runtime (depending on conditions of use).

POSSIBLE INTEGRATION WITH OTHER EQUIPMENT

  • Dibal LP-3000 manual weigh-price labeller.
  • Dibal VD-3000 multimanagement weight indicator.
  • Cely RD-4 repeater (or other DMi as repeater).

OTHER POSSIBLE CONNECTIONS

  • External printer.
  • Other devices, with 4 input/Output option and only available in model DMI-610 S. Steel.
