Digital weight indicator

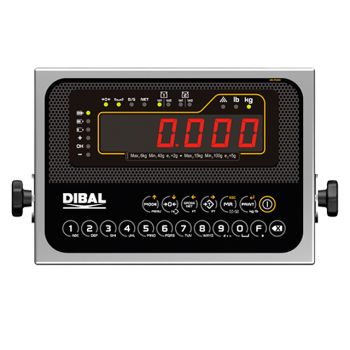

DIBAL  DMI-620

Weighing indicators for checkweighing, dosing, piece counting… with advanced options.

Dibal DMI-620 weight indicators are suitable for multiple functions in weighing processes (piece counting, checkweighing, dosing…), and they are connectable to up to 2 weighing platforms up to 14 load cells.

OUTSTANDING FUNCTIONS

  • Weight-Tare-Accumulation.
  • Piece counting.
  • Checkweighing (minimum-target-maximum).
  • Programmable tares (up to 10).
  • Weighings saving (up to 1,000).
  • Dosing: 1 product / 2 speeds (with 4 input/Output option).
  • Checkweighing (with 4 input/Output option). 1 or 2 optional plates.
  • 4-20 mA / 0-10 V analog output (optional).
  • Real time clock, battery-run.
  • Database for 400 PLUs (products) and 400 records (clients, suppliers, operators...).
  • Optional ALiBi memory (pending type approval).
  • Repeater.

CPU

  • Processor/Microprocessor: ARM 32 bit cortex M3.
  • Memory: 256 Kb Flash and 48 Kb RAM.

WEIGHING

  • Connection to 1 weighing platform of up to 14 load cells. (Connection to 2nd platform - up to 14 load cells -, optional).
  • Alignment: up to five adjustment points.
  • Up to 6,000 divisions. Monorange, multirange or multiinterval.

CONSTRUCTION

  • Structure:
    • AISI 304 stainless steel.
  • Keypad and display:
    • Keypad with 19 keys and LED display with 6 red digits (1” - 25.4 mm).
  • Working mode: weight (kg, lb), piece counting, checkweighing...
  • Adjustable angle mount for table or wall included.

COMMUNICATION TO PC

  • 2 RS-232 ports, one of them selfpowered (5 V / 500 mA).
  • RS-485/RS-422 (optional).
  • Ethernet (TCP/iP and UDP) (optional).
  • USB port (optional).
  • Wi-Fi (optional).
  • Several communications protocols available (contact us).

PC SOFTWARE

  • DCM:
    • Configuration of the indicator and back up.
    • Management and processing of data gathered by the indicator.

POWER SUPPLY

  • 110-230 VAC direct.
  • Internal rechargeable battery (Li-ion) optional:
    • Up to 44 hours’ runtime (depending on conditions of use).

POSSIBLE INTEGRATION WITH OTHER EQUIPMENT

  • Dibal LP-3000 manual weigh-price labeller.
  • Dibal VD-3000 multimanagement weight indicator.
  • Cely RD-4 repeater (or other DMi as repeater).

OTHER POSSIBLE CONNECTIONS

  • External printer (Epson protocol), for printing reports.
  • Other devices, with the 4 Input/Output option.
