Milling machine

CORREA  A25/30

Used machinery
Ref: 9253802

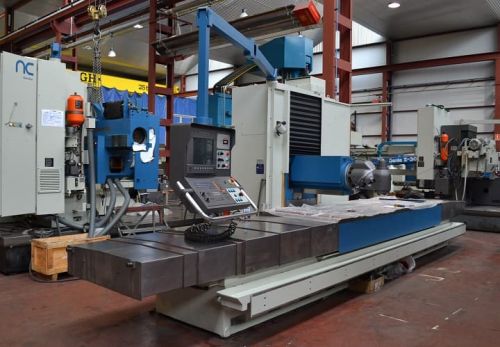

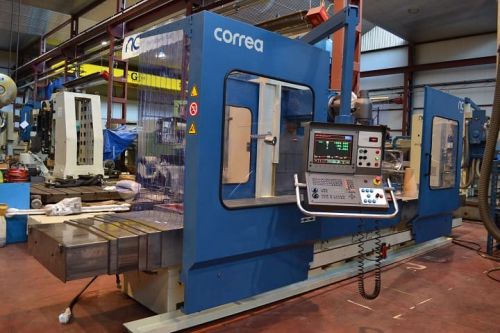

Bed type CORREA A 25/30 milling machine

Year of manufacture: 1997

Condition: Inspected & new painting

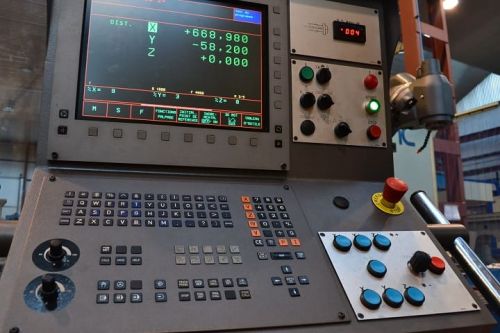

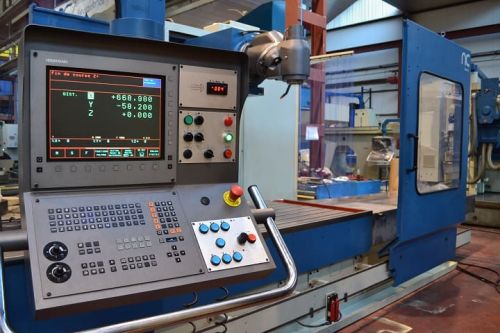

Control unit: HEIDENHAIN TNC-426

Table dimensions: 3000 x 1000 mm

Number of T slots: 8

T slots dimensions: 22 mm

X axis traverse (mm): 3000

Y axis traverse (mm): 1200

Z axis traverse (mm): 1000

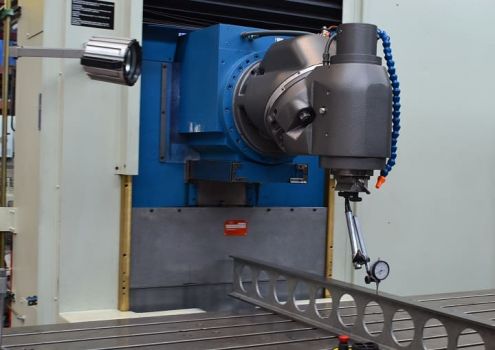

Head type: Universal manual

Tool clamping system: Hydraulic

Taper nose: ISO 50

Speed range: 20 - 3000 r.p.m.

Spindle power: 22 kW

Feedrate: 2 - 5000 mm/min

Rapid feedrate X = 8.000 mm/min / Y,Z = 10.000 mm/min

Max weight on table: 7000 kg

Machine weight: 19000 kg

Machine dimensions: 7810 x 4664 x 2750 mm

ACCESSORIES:

Guarding: Yes

Electronic handwheel: HR-410

Sale price (Ex Work): On request
