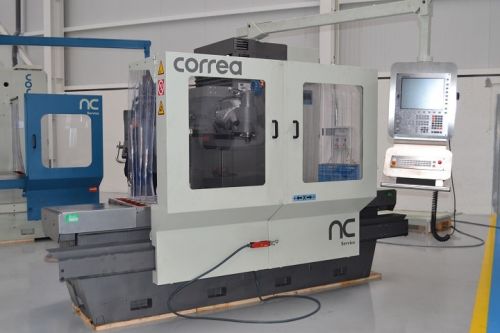

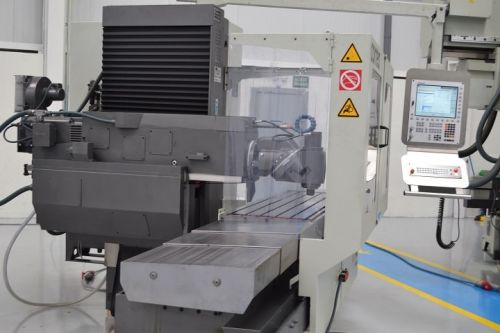

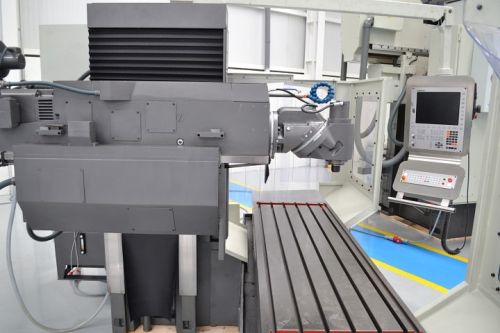

Bed-type CNC milling machine CORREA A16

TYPE OF MILLING MACHINE

• Type: Bed type
• Brand: Correa
• Model: A16
• Year of manufacture: 1987
• Retrofitted: 2018

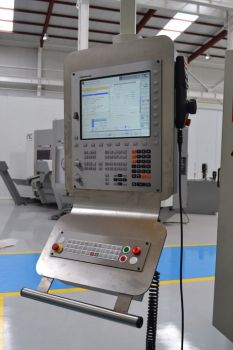

• Numerical control: HEIDENHAIN TNC-320 (¡NUEVO! / NEW!)

TECHNICAL FEATURES

Dimensions

• Table dimensions: 2000 x 630 mm
• Number of T slots: 6
• T slots dimensions: 18 mm

Traverses of axis

• X axis traverse: 1800 mm
• Y axis traverse: 800 mm
• Z axis traverse: 800 mm

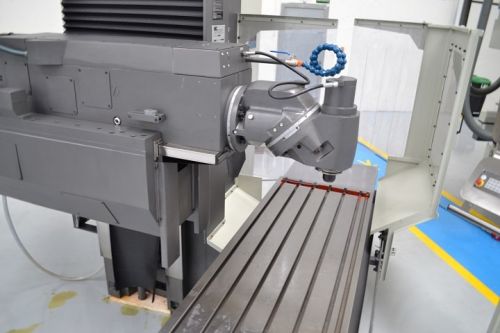

Milling head

• Head type: Universal Manual
• Tool clamping system: Hydraulic
• Taper nose: ISO 50
• Speed range: 25 - 2600 rpm
• Spindle power: 16 kW

Feedrates

• Feedrate: 5 - 5000 mm/min
• Rapid feedrate: 8000 mm/min

Weight and dimensions

• Maximum weight on table: 3000 Kg
• Machine weight: 10000 Kg
• Machine dimensions: 4920 x 2714 x 2417 mm

Accesories

• New guarding
• New electronic handwheel: HR-510

SALES CONDITIONS

• Warranty: 6 months mechanical parts
• Sale price (Ex Work): On request
