Bed-type CNC milling machine CORREA A25/50

TYPE OF MILLING MACHINE

• Type: Bed type
• Brand: Correa
• Model: A25/50
• Year of manufacture: 1990
• Retrofitted: 2018

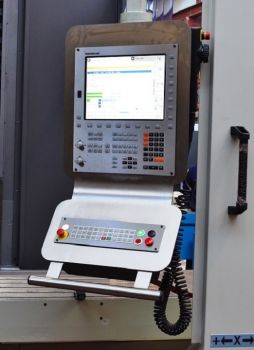

• Numerical control: HEIDENHAIN TNC-320 (¡NUEVO! / NEW!)

TECHNICAL FEATURES

Dimensions

• Table dimensions: 5000 x 1000 mm
• Number of T slots: 7
• T slots dimensions: 22 mm

Traverses of axis

• X axis traverse (mm): 5000
• Y axis traverse (mm): 1200
• Z axis traverse (mm): 1000

Milling head

• Head type: Universal Manual (U-25)
• Tool clamping system: Hydraulic
• Taper nose: ISO 50
• Spindle power: 20 kW
• Speed range: 20 - 2500 rpm

Feedrates

• Feedrate: 2 - 5000 mm/min
• Rapid feedrate (X / Y, Z): 5000 / 7000 mm/min

Weight and dimensions

• Max weight on table: 7000 kg
• Machine weight: 23000 kg
• Machine dimensions: 11630 x 4800 x 2700 mm

Accesories

• Guarding
• NEW! Electronic handwheel: HR-510

SALES CONDITIONS

• Warranty: 6 months mechanical spare parts
• Sale price (Ex Work): On request
