NC SERVICE MILLING MACHINES S.A.

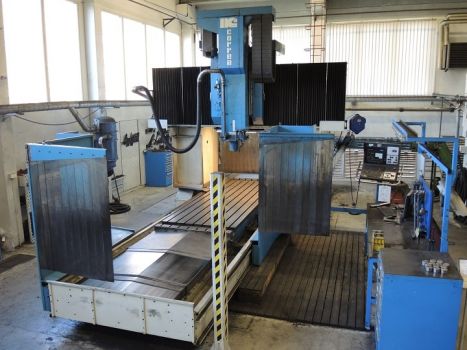

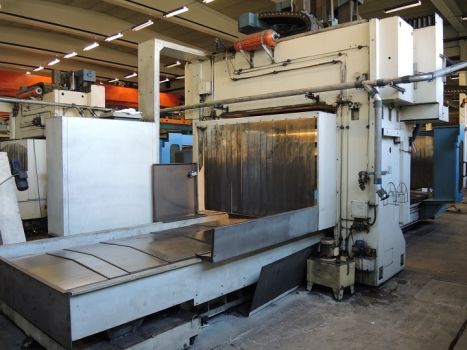

CNC bridge type milling machine

CORREA  FP40/40

Used machinery
Ref: 8950304

TYPE OF MILLING MACHINE

  • Type: Bridge type
  • Brand: Correa
  • Model: FP40/40
  • Year of manufacture: 1997
  • Retrofitted: 2019

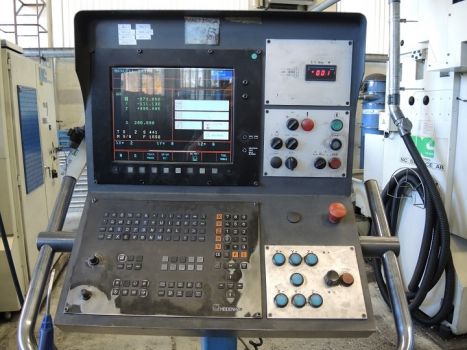

  • Numerical control: HEIDENHAIN TNC-426

TECHNICAL FEATURES

Dimensions

  • Table dimensions: 4000 x 1250 mm
  • Number of T slots: 8
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 3500 mm
  • Y axis traverse: 2500 mm
  • Distance between columns: 2040 mm
  • Z axis traverse: 1000 mm

Milling head

  • Head type: Manual U40 (Optional: Standard vertical spindle)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50
  • Speed range: 20 - 2000 r.p.m.
  • Spindle power: 22 kW

Feedrates

  • Feedrate: 2 - 5000 mm/min
  • X-Y,Z Rapid feedrate: 15000 / 12000 mm/min

Weight and dimensions

  • Max Weight on table: 10000 kg
  • Machine weight: 24900 kg
  • Machine dimensions: 10748 x 4932 x 4400 mm

Accesories

  • Guarding: Yes
  • Coolant: External
  • Electronic handwheel: HR-410
  • Transversal metal hinged conveyor (1)
  • Workpiece measurement probe: Heidenhain TS-642

SALES CONDITIONS

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
