NC SERVICE MILLING MACHINES S.A.

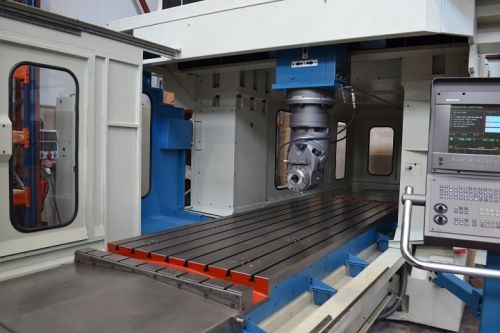

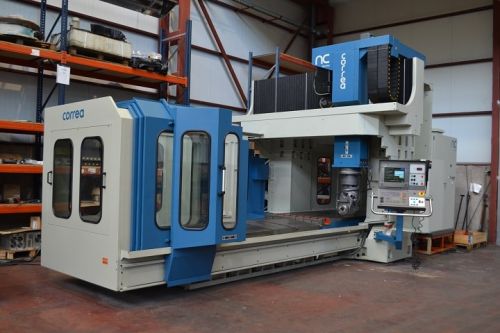

CNC bridge type milling machine

CORREA  FP30/40

Used machinery

TYPE OF MILLING MACHINE

  • Type: Bridge type
  • Brand: Correa
  • Model: FP30/40
  • Year of manufacture: 1998
  • Retrofitted: 2017/2018

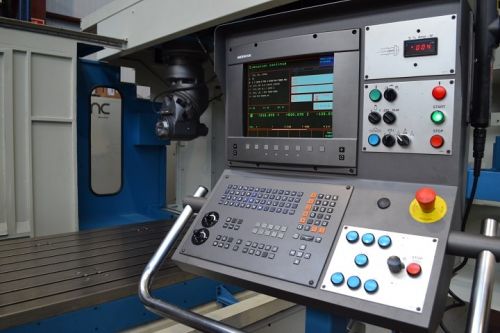

  • Numerical control: HEIDENHAIN TNC-426 PB

This CORREA FP30/40 milling machine not only offers an excellent combination of rigidity and dynamic performance due to its design, also guarantees a very precised machining. Direct output head option with speed up to 5000 r.p.m.

Milling machine for sale after its refurbishment and with guarantees. Available for immediate delivery. Visit our Showroom for checking its machining performance.

TECHNICAL FEATURES

Dimensions

  • Table dimensions: 4000 x 1250 mm
  • Number of T slots: 8
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 3500 mm
  • Y axis traverse: 2000 mm
  • Distance between columns: 1740 mm
  • Z axis traverse: 800 mm

Milling head

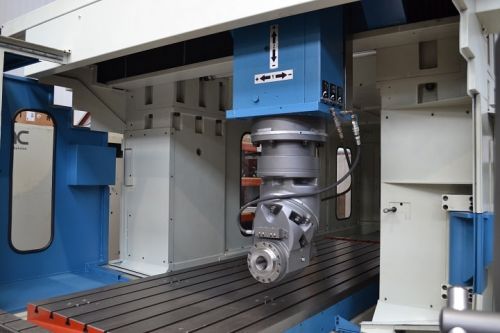

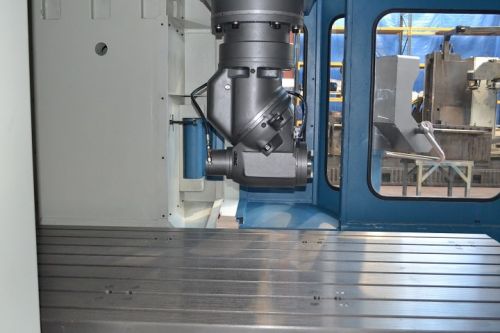

  • Milling Head: Universal Manual (U40)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO50
  • Speed range: 20 - 3.000 rpm (5.000 rpm direct exit option)
  • Spindle power: 30 kW  /  725 Nm

Feedrates

  • Feedrate: 7000 mm/min
  • Rapid feedrate (X / Y,Z): 15000 /  12000 mm/min

Weight and dimensions

  • Maximum weight on table: 10000 Kg
  • Machine weight: 30500 Kg
  • Machine dimensions: 10748 x 4762 x 4400 mm

Accesories

  • Full guarding
  • High pressure internal coolant through spindle (in direct exit option)
  • Head support in column: manual changing
  • Electronic handwheel: HR-410
  • Longitudinal chip evacuation system through pallets, with transversal extractor and coolant Tank
  • SALES CONDITIONS
  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
