NC SERVICE MILLING MACHINES S.A.

CNC bridge type milling machine

CORREA  FP50/50
Year: 2014

Used machinery

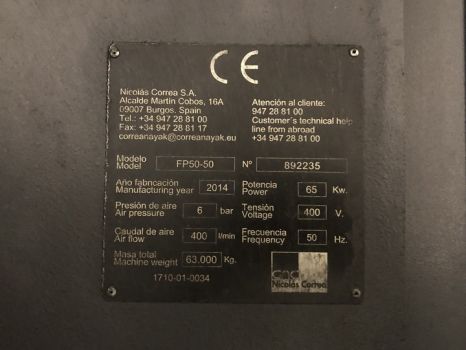

Ref: 892235

Bridge type milling machine CORREA FP50/50

YOM: 2014

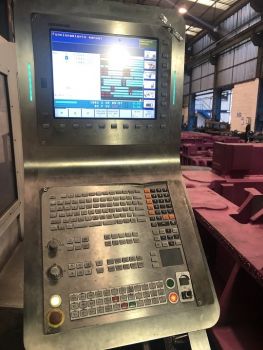

Control Unit: Heidenhain TNC-i530



Table dimensions: 5000 x 2000 mm

Number of T slots: 13

T slots dimensions: 22 mm



X axis traverse: 5000 mm

Y axis traverse: 3250 mm

Distance between columns: 2720 mm

Z axis traverse: 1000 mm

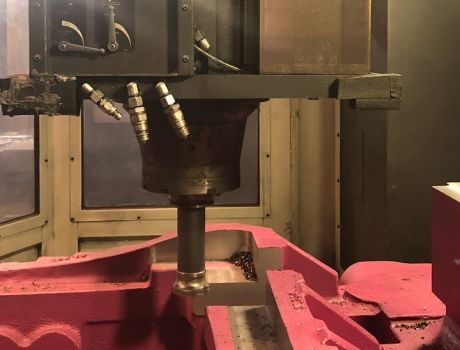

Head type:  1- Universal manual (UM40)

       2- Direct exit

Tool clamping system: Hydraulic

Taper nose: ISO 50 / DIN69871

Speed range: 3000 r.p.m.

Spindle power: 37 kW / 582 Nm



Feedrate (X, Y,Z): 2 - 5000 mm/min

Rapid federate (X, Y,Z): 7200 / 12000 mm/min



Max Weight on table: 25000 kg

Machine weight: 56000 kg

Machine dimensions: 12700 x 5070 x 4900 mm



Guarding

Electronic handwheel: HR-410

Chip conveyor: Longitudinal, pallet type

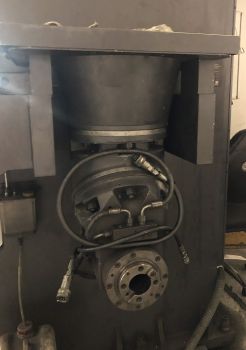

Head support in column. Manual changing



Sale price (Ex Work): On request

For immediate delivery!

Ask for enquiry
