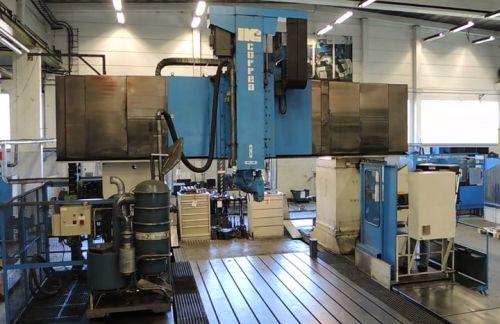

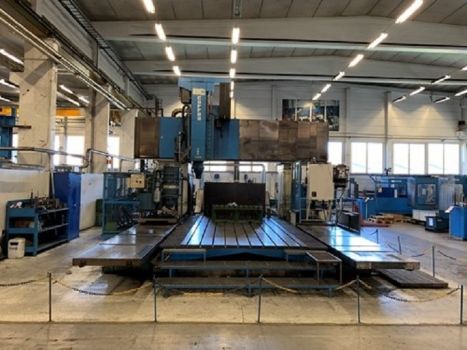

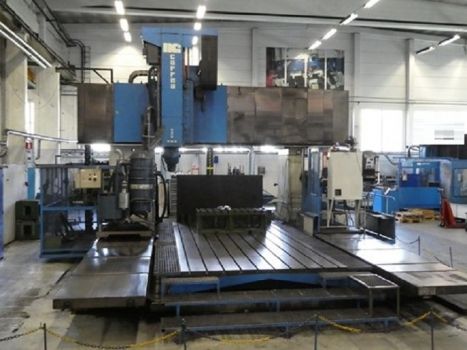

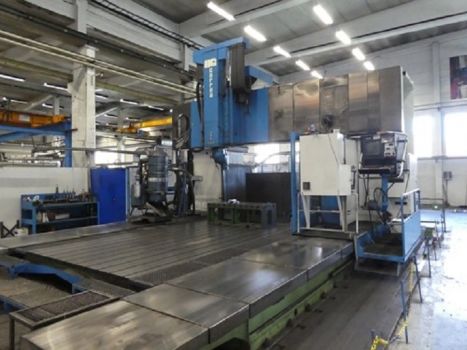

CNC bridge type milling machine CORREA FPM60

TYPE OF MILLING MACHINE

• Type: Bridge type
• Brand: Correa
• Model: FPM60
• Year of manufacture: 1995
• Retrofitted: 2019
• Numerical control: HEIDENHAIN TNC-426

TECHNICAL FEATURES

Dimensions

• Table dimensions: 6000 x 2500 mm
• Number of T slots: 10
• T slots dimensions: 22 mm

Traverses of axis

• X axis traverse: 6000 mm
• Y axis traverse: 3800 mm
• Distance between columns: 3370 mm
• Z axis traverse: 1000 mm

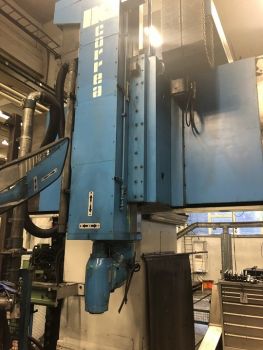

Milling head

• Head type: 3º Auto-indexing milling head (UDG40)
• Tool clamping system: Hydraulic
• Taper nose: ISO 50
• Speed range: 20 - 2000 r.p.m.
• Spindle power: 30 kW

Feedrates

• Feedrate: 2 - 5000 mm/min
• X-Y,Z Rapid feedrate: 7200 mm/min

Weight and dimensions

• Max Weight on table: 15000 kg/m2
• Machine weight: 75000 kg
• Machine dimensions: 15300 x 6550 x 6180 mm

Accesories

• Guarding
• Automatic tool changer: ATC-60
• Coolant: External
• 2 longitudinal chip conveyors
• Electronic handwheel: HR-410

SALES CONDITIONS

• Warranty: 6 months mechanical spare parts
• Sale price (Ex Work): On request
